Crimping Marks Gallery
Crimping marks are one of the most distinctive features 5.25" and 8" floppy disks. This gallery shows a representative example for each crimping mark types found on various disks in the private collection.
As a reminder: crimping marks are the traces left by crimping machines during the manufacturing process when the jacket of disk is crimped around the edge of the disk.
11 crimping marks
| Crimping Mark | Description | Back Image | Example Disk |
|---|---|---|---|
| 14 circles with grid | 14 circles around the disk with dots connected by a grid inside them |
|
Verbatim V1-525-0002-001 |
| 16 circles with grid | 16 circles around the disk with dots connected by a grid inside them |
|
Generic XX-525-0004-001 |
| circle | 12 plain circles around the disk |
|
Genius G7-525-0001-001 |
| dots in circle | 12 circles around the disk with dots inside them |
|
Verbatim V1-525-0001-001 |
| grid | 16 small rectangular shapes with dots connected by a grid inside them |
|
BASF B1-525-0001-001 |
| grid in small circle on top, small circles on both sides |
|
3M 3M-525-0010-002 | |
| line | 16 lines around the disk |
|
Generic XX-525-0001-001 |
| none | no visibile crimping marks on the disk |
|
Parrot P13-525-0001-001 |

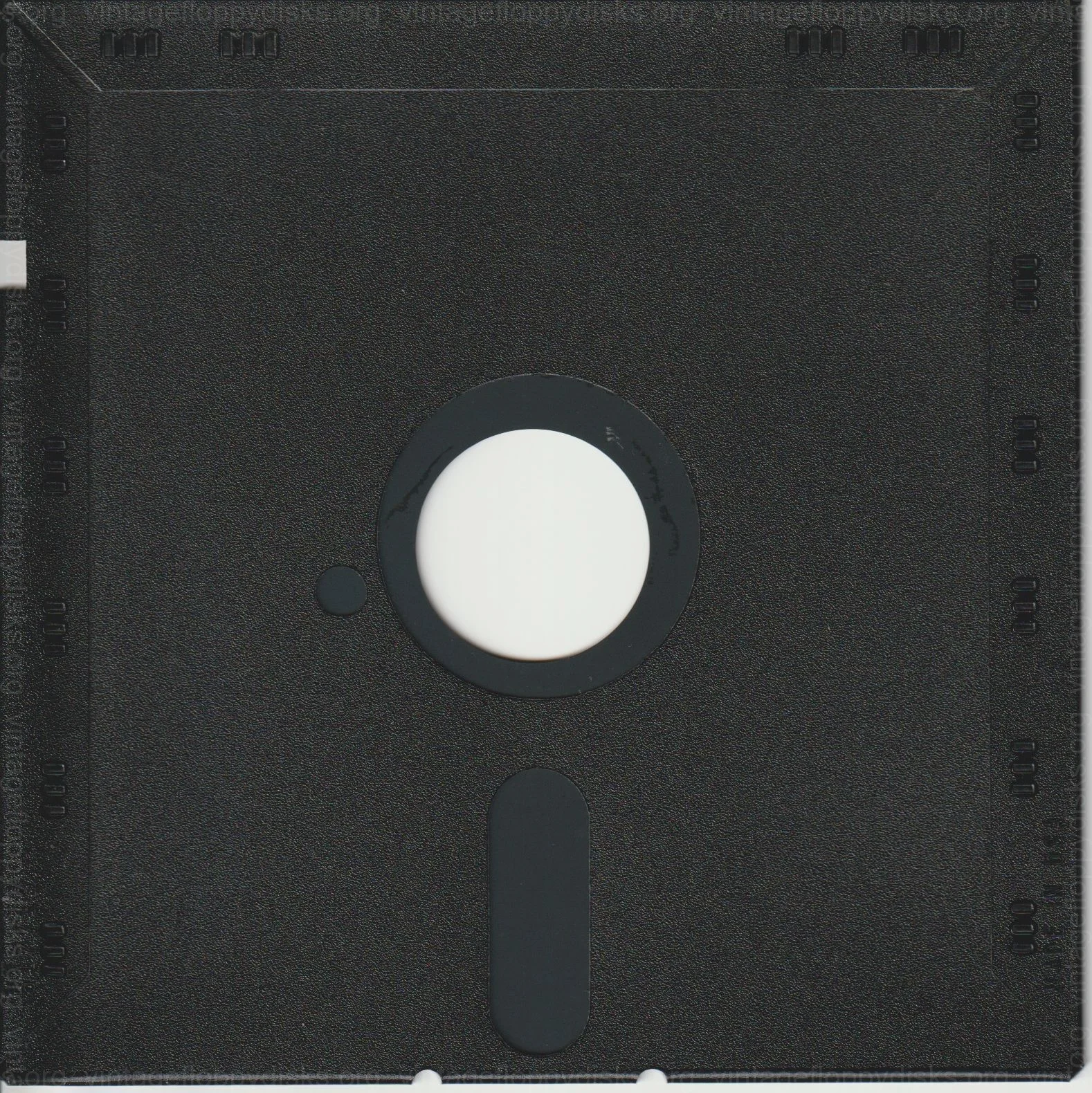

| triple rectangles | 16 rectangle triples around the disk |
|
Generic XX-525-0002-001 |
| triple rectangles on top, squares on sides | triple rectangles on top, small squares on both sides |
|
3M 3M-525-0010-003 |
| X in a circle | 16 circles around the disk with X shaped marks inside them |
|
3M 3M-525-0001-001 |
