Generic Disk

Cat. No.: XX-35-0017-001

Added to collection • 5 months ago

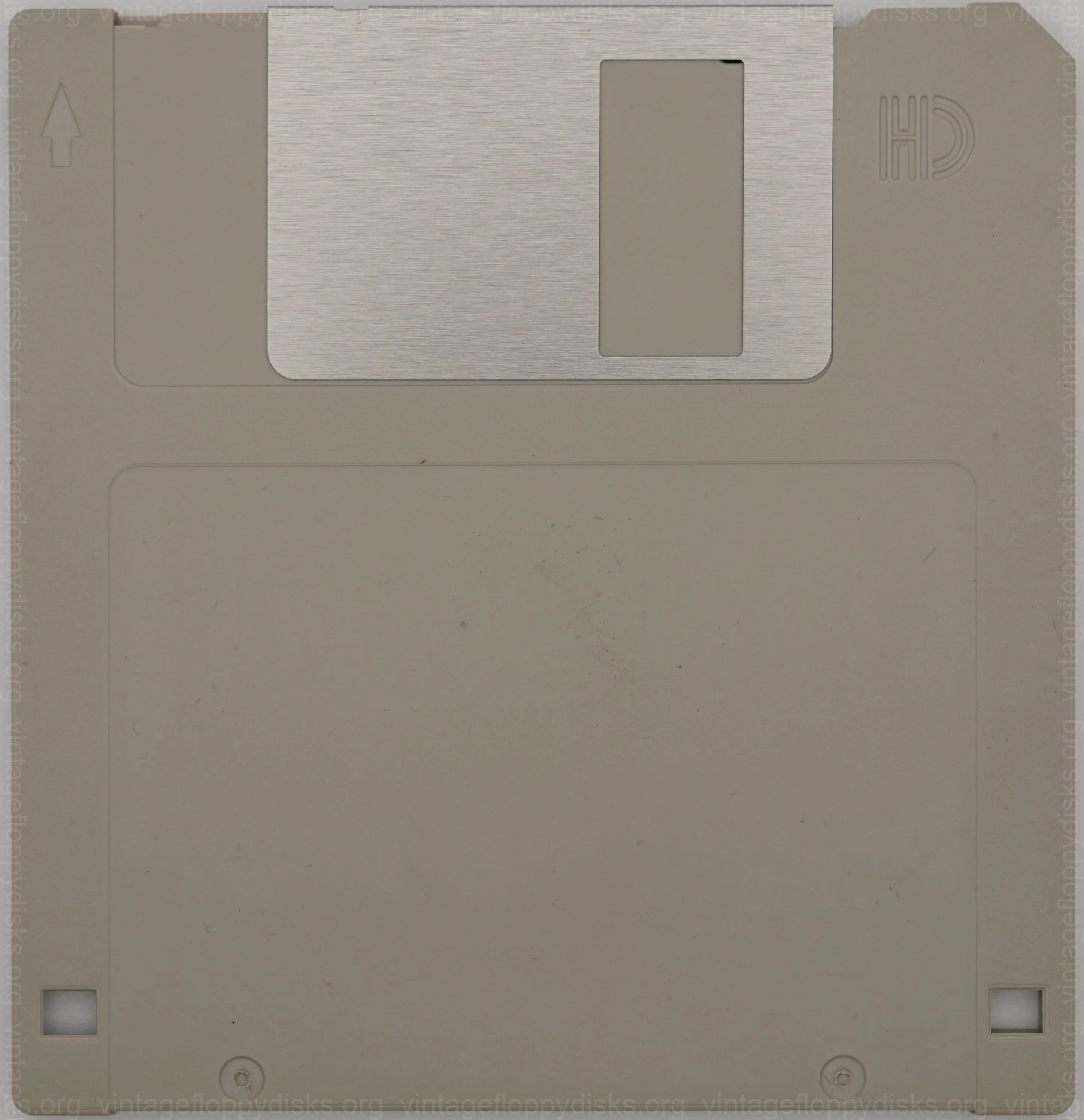

Front

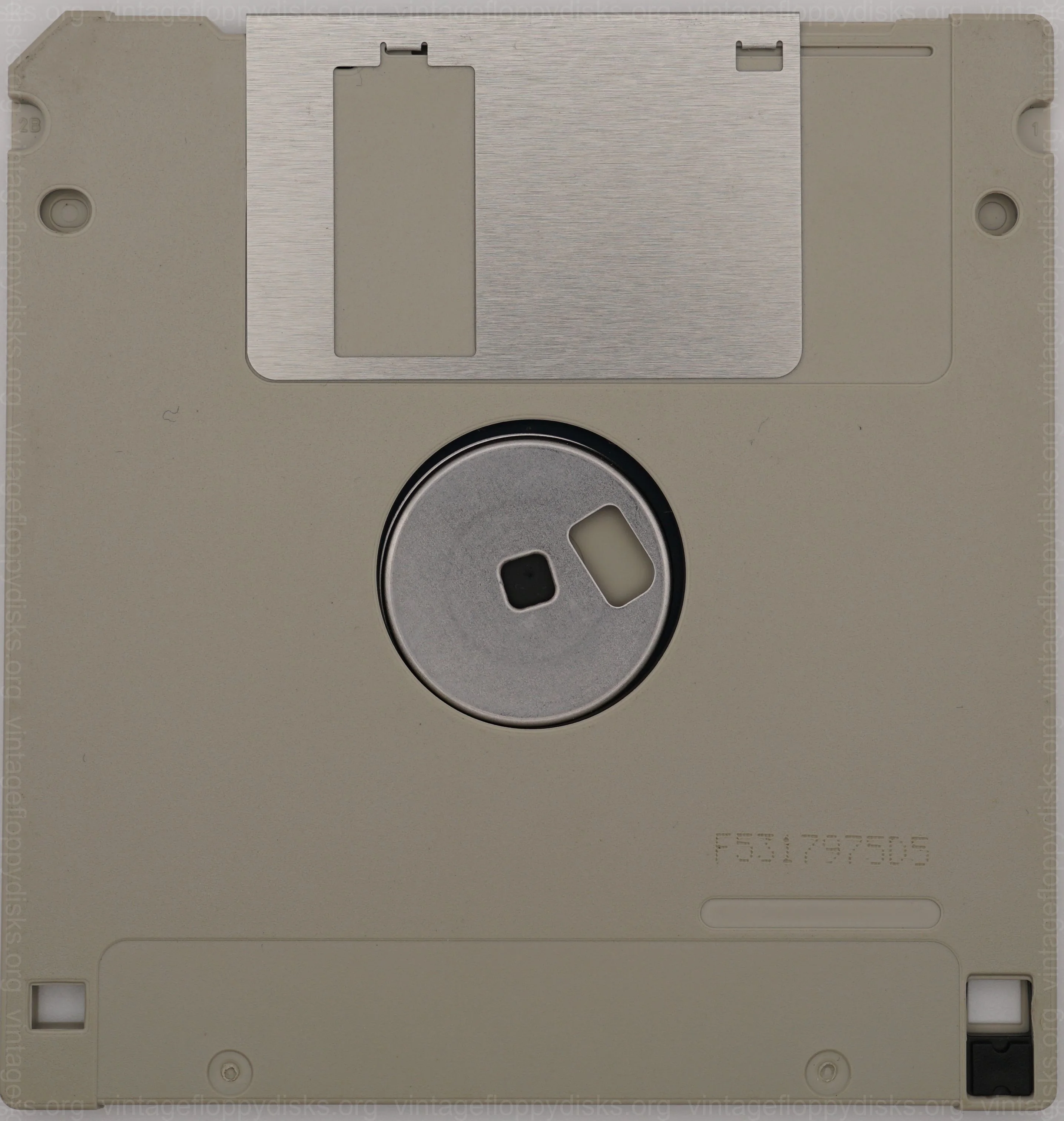

Back

Properties

Basic Information

Brand Generic

Size 3.5"

Capacity ~1.44 Mb

Case Properties

Case Color grey / matte

Shutter Properties

Shutter Material metal (silver)

Shutter Engraved No

Write Protection

Write Protection Type sliding

Write Protection Sign none

Label & Density

Label Area Type full + strip

Density Sign embossed

Mold Codes & Markings

Mold Code 1 2B (front)

Mold Code 3 1 (front)

Tooling Mark Visible Yes

Part Number Details

Part Number F5317975D5

Part No. Side back

Part No. Reading Direction front

Part No. Style molded

Part No. Orientation horizontal

Part No. Position bottom right

Physical Features

HD Hole Style punched

Related Disks

These disks that are closely related to the one above, at first sight sometimes it is difficult to tell whether it is the same disk or not as they differ only in nuances.
This table below helps to compare the disks and summarizes the differences between this disk and the related ones.

Disk	Differences
XX-35-0017-003 ~1.44 Mb	Part Number: XX-35-0017-001: Present XX-35-0017-003: Not present Tooling Mark Visible: XX-35-0017-001: Yes XX-35-0017-003: No
XX-35-0017-007 ~1.44 Mb	Part Number: XX-35-0017-001: Present XX-35-0017-007: Not present Rear Marking Text: XX-35-0017-001: — XX-35-0017-007: F5326163E4
XX-35-0017-002 ~1.44 Mb	Part Number: XX-35-0017-001: Present XX-35-0017-002: Not present Mold Code 3: XX-35-0017-001: Present XX-35-0017-002: Not present Mold Code 1 Reading Direction: XX-35-0017-001: front XX-35-0017-002: left Tooling Mark Visible: XX-35-0017-001: Yes XX-35-0017-002: No
XX-35-0017-004 9G1634 ~1.44 Mb	Part No. Reading Direction: XX-35-0017-001: front XX-35-0017-004: right Part No. Style: XX-35-0017-001: molded XX-35-0017-004: printed Part No. Orientation: XX-35-0017-001: horizontal XX-35-0017-004: vertical Part No. Position: XX-35-0017-001: bottom right XX-35-0017-004: bottom left Tooling Mark Visible: XX-35-0017-001: Yes XX-35-0017-004: No
XX-35-0017-006 ~1.44 Mb	Part Number: XX-35-0017-001: Present XX-35-0017-006: Not present Mold Code 2: XX-35-0017-001: Not present XX-35-0017-006: Present Mold Code 1 Reading Direction: XX-35-0017-001: front XX-35-0017-006: left Mold Code 3 Reading Direction: XX-35-0017-001: front XX-35-0017-006: right Tooling Mark Visible: XX-35-0017-001: Yes XX-35-0017-006: No
XX-35-0017-005 G176EM3D ~1.44 Mb	Part No. Style: XX-35-0017-001: molded XX-35-0017-005: printed Part No. Position: XX-35-0017-001: bottom right XX-35-0017-005: bottom left Mold Code 1 Reading Direction: XX-35-0017-001: front XX-35-0017-005: right Mold Code 3 Reading Direction: XX-35-0017-001: front XX-35-0017-005: left Rear Marking Text: XX-35-0017-001: — XX-35-0017-005: MADE IN ENGLAND Tooling Mark Visible: XX-35-0017-001: Yes XX-35-0017-005: No
